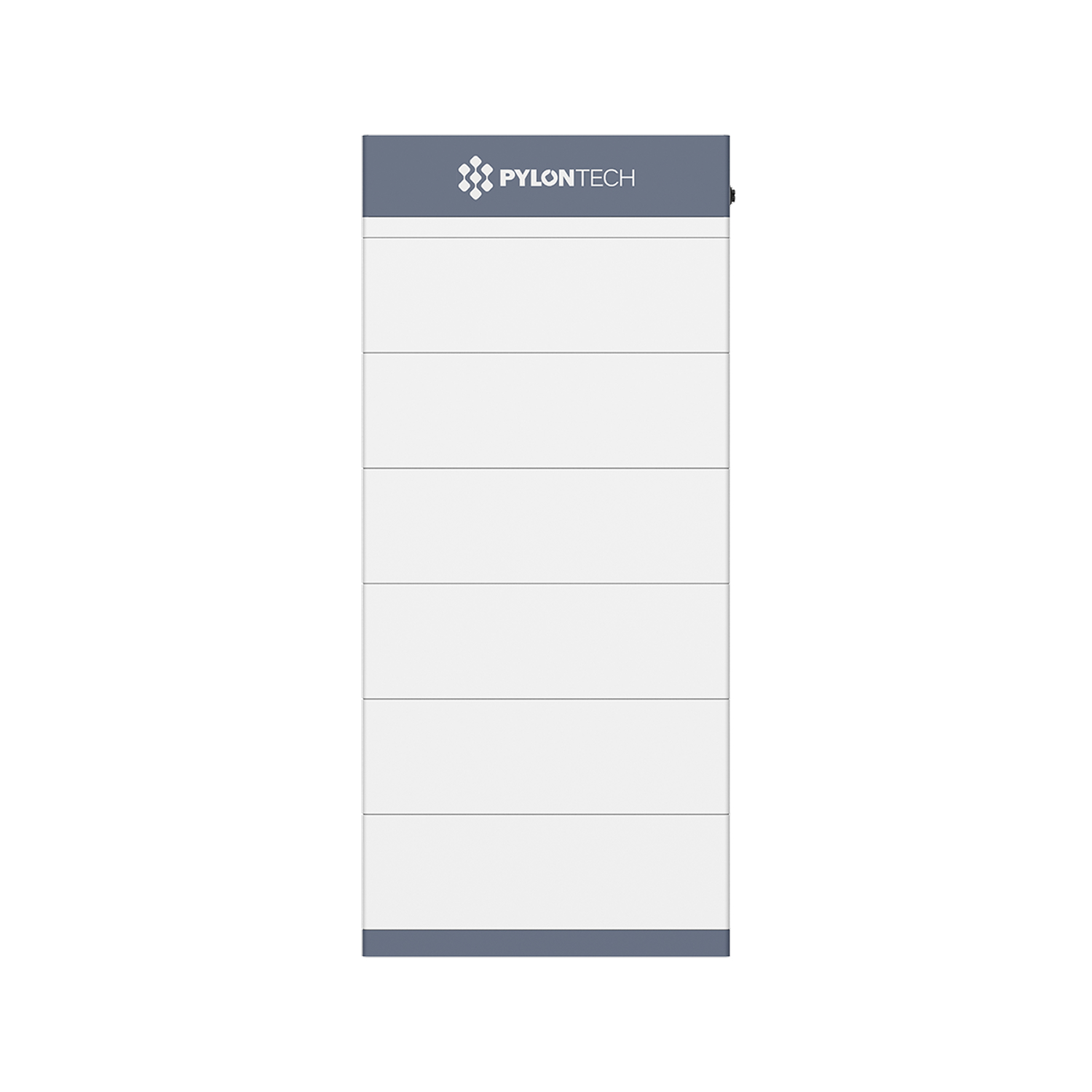

Battery Pylontech Force H3

Product Overview

• • Battery Module FH10050
  • Nominal Voltage (VDC) 102.4
  • Battery Module Capacity (kWh) 5.12
  • Battery System Capacity (kWh) 35.84
  • Usable Capacity （kWh) 34.01
  • Battery System Voltage(VDC) 716.8
  • Dimension (W*D*H mm) 540*350*1380
  • Weight (kg) 287
  • Depth of Discharge 95%
  • Charge/ Discharge (A) -(Normal) 50
  • Charge/ Discharge (A) -(Max) 55@15MIN
  • Communication port Modbus RTU/CAN
  • Multi-group Max 6 groups in parallel
  • IP rating IP65
  • Working Temperature/ (℃) Charge -10~55
  • Storage Temperature/ (℃) -20~45
  • Humidity (RH) 5%~95% No condensation
  • Altitude (m) <4,000
  • Design life (@25℃) 15+Years
  • Cycle life (@25℃) >8,000
  • Certification IEC62040-1/IEC62477-1/IEC62619/IEC63056/UL1973/UL9540A/UN38.3/VDE-AR-E 2510-50
